The Ultimate ACM

Quality meets design

The high-quality, decorative surfaces of DIBOND BUTLERFINISH brushed metals are the material of choice for applications such as product & furniture design, shop-fitting, and interior & store design. The aesthetically brushed finish combined with the excellent processing properties of DIBOND lends it as an ideal solution for a wide range of design applications.

Material Composition

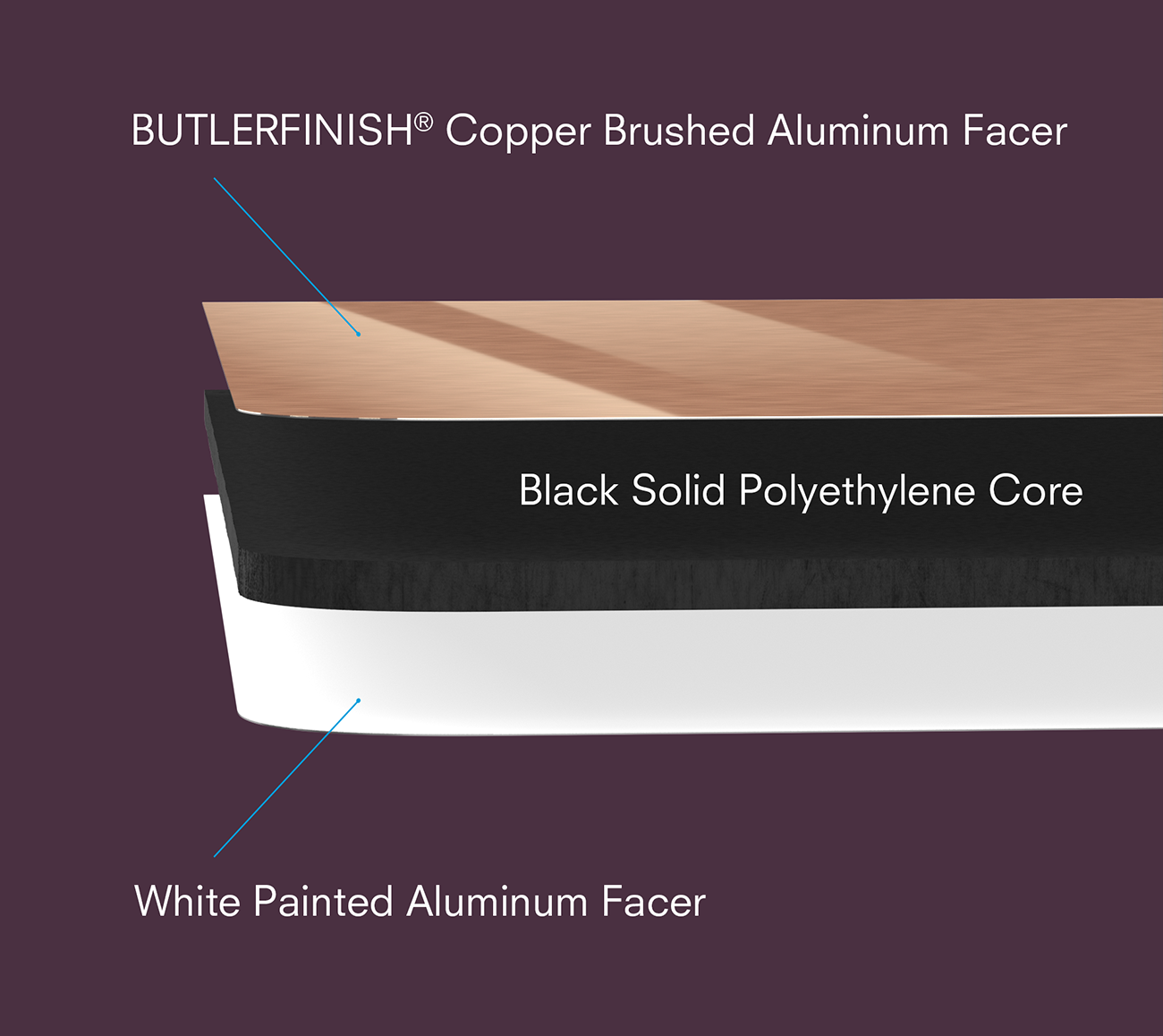

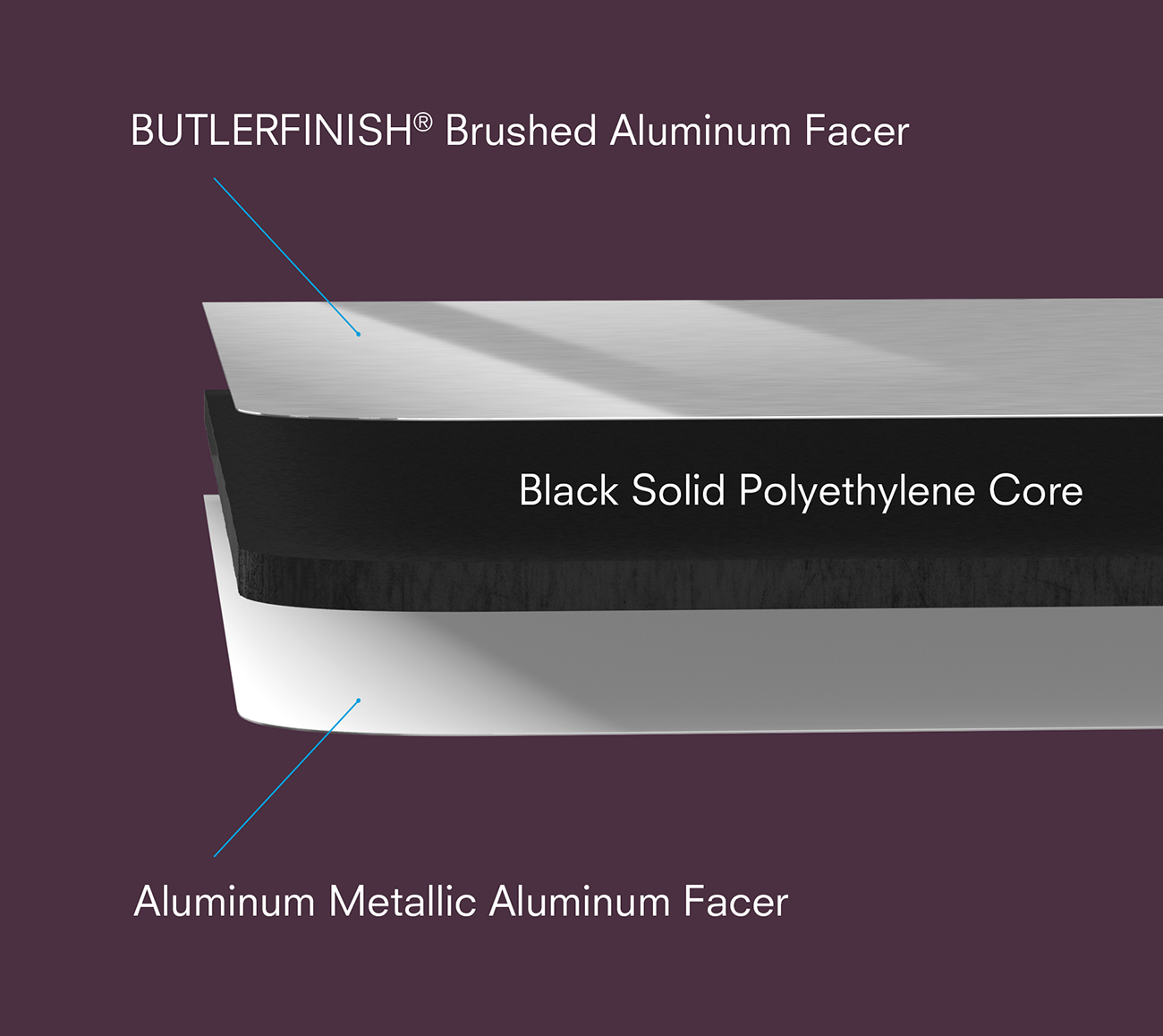

DIBOND BUTLERFINISH brushed metals are comprised of sheets of .012” aluminum with a specially embossed brushed effect and coated with a clear lacquer, bonded to a solid polyethylene core. Manufactured by 3A Composites GmbH.



Advantages with DIBOND® BUTLERFINISH® Brushed Metals


  • Specialized manufacturing process creates an embossed, brushed aesthetic
  • High-quality brushed effect is perfect for store design, furniture construction, high-end store displays as well as signage
  • Extremely unique results when digitally or screen printed
  • Excellent flatness and rigidity
  • Provides excellent durability in outdoor applications
  • Approximately one half the weight of a solid aluminum sheet
  • Can be routed and returned to add dimension or roll-formed to deliver sweeping curves
  • Self-extinguishing; Class A fire rating (ASTM E-84)
  • UL 94V-0


Recommended Applications

Below are some of the more common applications for which DIBOND® BUTLERFINISH® Brushed Metals provides a solution. While these are frequent uses for our material, we love to see the unique applications designers & artists come up with!

  • POP / POS Displays Medium-term application life
  • Exhibits & Kiosks Long-term application life
  • Interior Signage & Displays Long-term application life

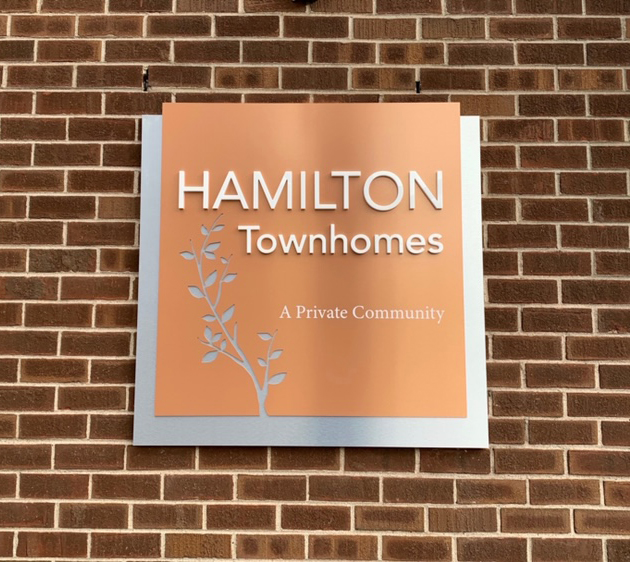

  • Exterior Signage & Displays Long-term application life
  • Store & Interior Design Long-term application life
  • Framing Long-term application life
  • Promotional Campaigns Long-term application life
  • 3-Dimensional Displays Long-term application life
  • Furniture Design Long-term application life
  • Shop-Fitting Long-term application life
  • Retail Fixtures Long-term application life
  • Shelving & Storage Components Long-term application life
  • Dimensional Letters Long-term application life

Recommended Fabrication Methods

Thanks to over 40 years of manufacturing experience, we are able to provide general fabrication guidelines and best practices that have been successful with our materials.”

  • Mounting Cold mount techniques only
  • Repositioning Vinyl
  • Digital Printing
  • Screen Printing
  • Painting
  • Saw Cutting
  • Routing
  • Die Cut/Punch Punch press die set is required; not a steel rule die
  • Forming Curves

Gauges, Colors & Sheet Sizes


Gauges and Colors Stock Sheet Sizes

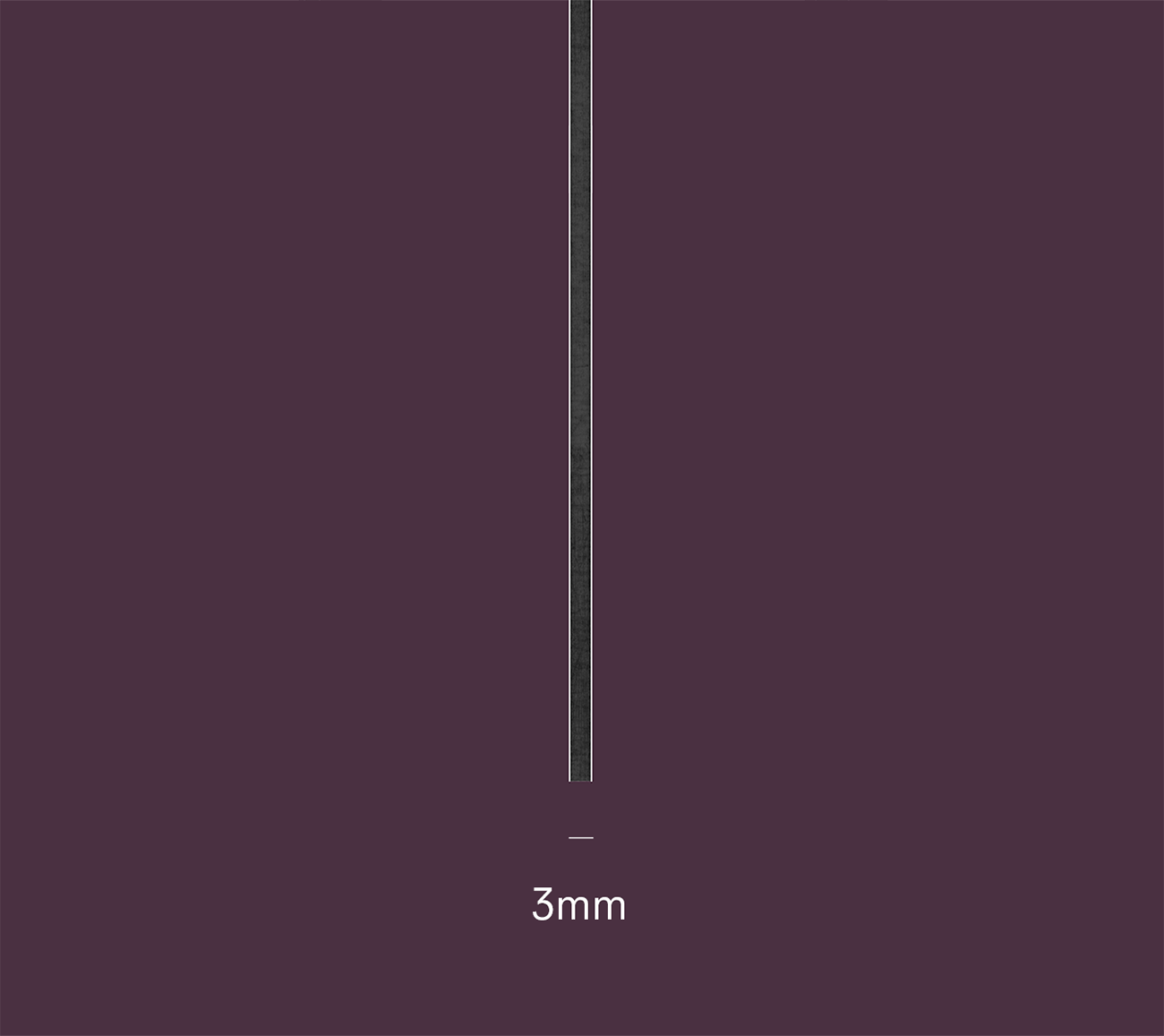

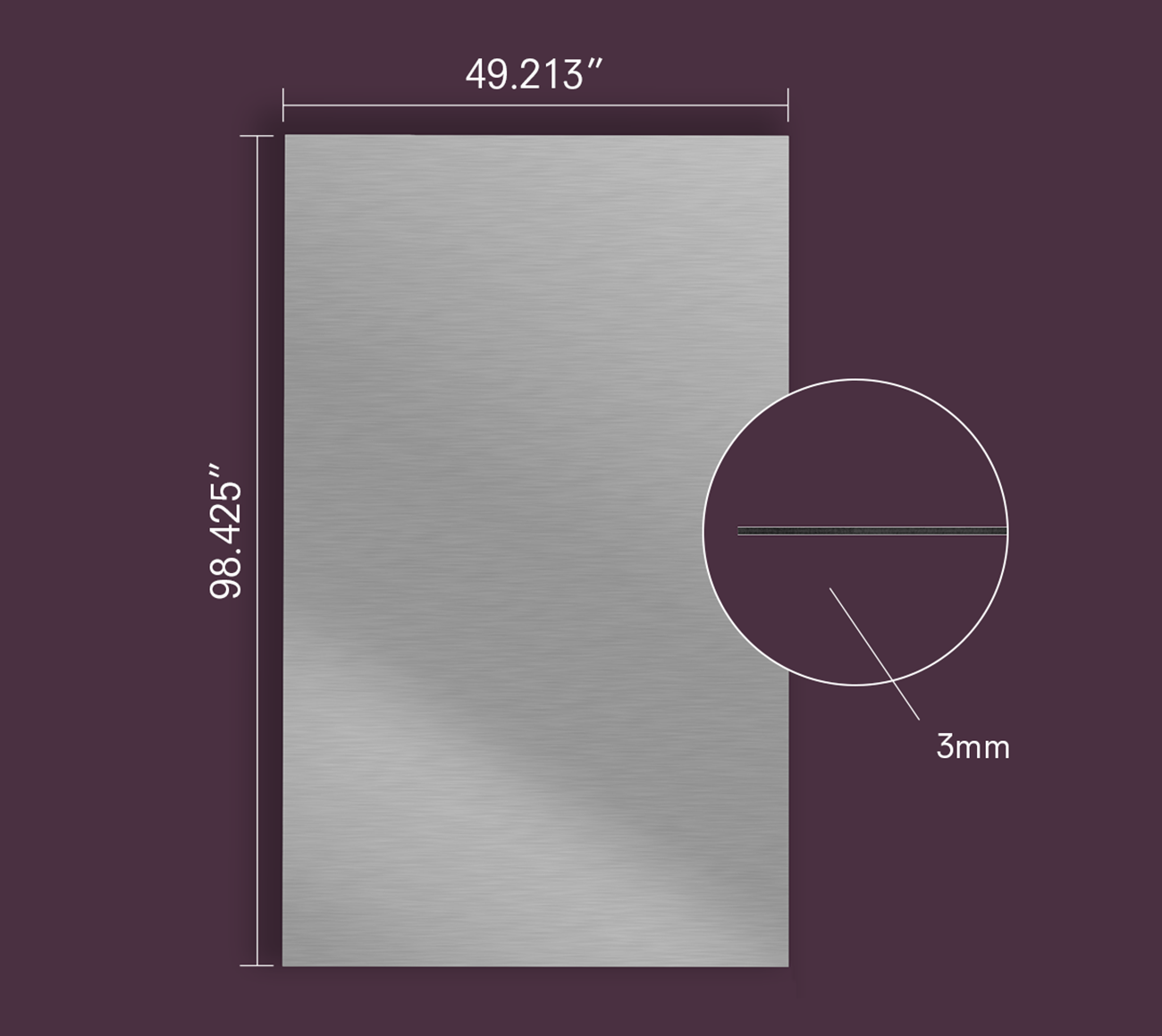

3mm - BUTLERFINISH / Aluminum Metallic 49.2” x 98.4”
3mm - BUTLERFINISH Copper / White Matte 49.2” x 98.4”
3mm - BUTLERFINISH Steel / White Matte 49.2” x 98.4”
