The Ultimate ACM

A reflection of quality

The reflective surfaces of DIBOND mirrors offer outstanding reflection properties similar to those of a conventional glass mirror without the breakability of glass and at about half the weight. DIBOND mirrors create more light, space and transparency in interiors and is a popular option for designing interior spaces such as shops, hotels, bars and other leisure facilities. The mirror surfaces can be both screen- and digitally printed, as well as laser engraved, making them a unique solution for advertising & signage. The high-quality finish combined with the excellent processing properties of DIBOND lends it as an ideal solution for a wide range of design applications.

Material Composition

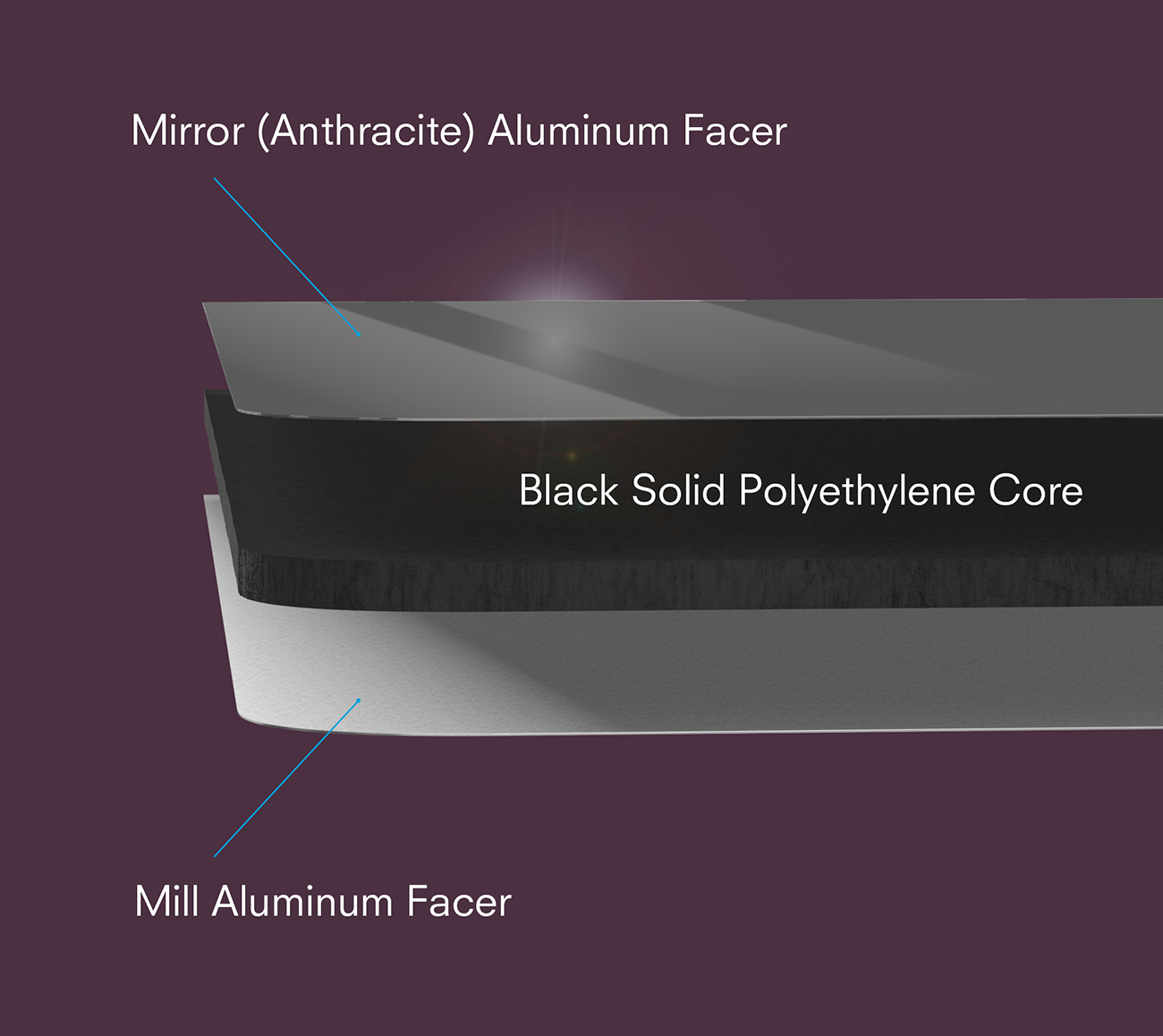

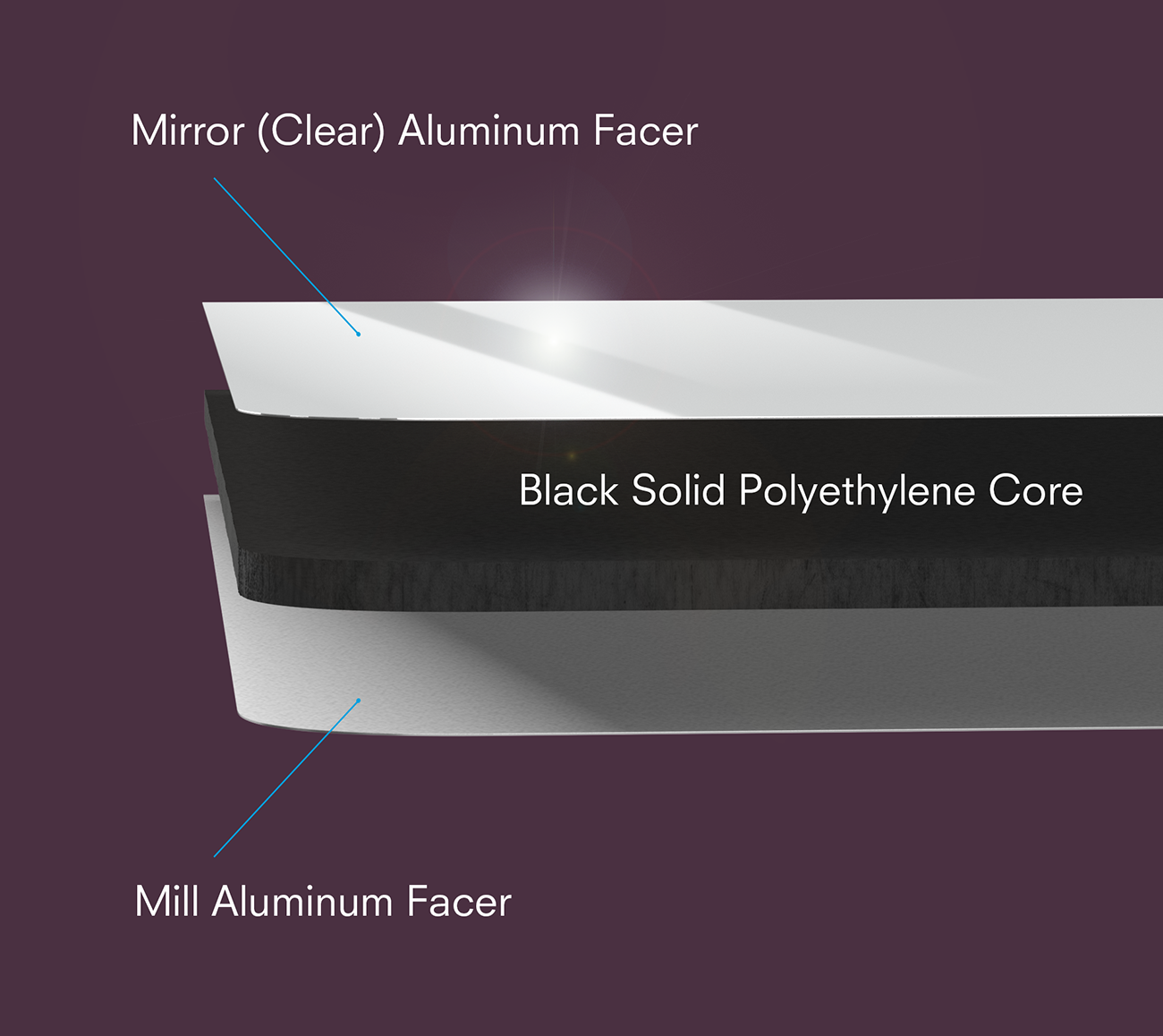

DIBOND mirrors are comprised of sheets of .012” aluminum with mirrored surface, bonded to a solid polyethylene core. Manufactured by 3A Composites GmbH.



Advantages with DIBOND® Specialty Finishes


  • Specialized manufacturing process creates a clear, reflective mirror surface
  • High-quality effect is perfect for store design, high-end retail displays as well as signage
  • Extremely unique results when digitally or screen printed
  • Can be laser engraved
  • Mirror surface doesn't flake off during the cutting process
  • Lightweight and durable - won't break during transportation or installation
  • Less sensitive to pressure than acrylic or glass - no warping
  • Excellent flatness and rigidity
  • Approximately one half the weight of a conventional glass mirror
  • Can be routed and returned to add dimension or roll-formed to deliver sweeping curves
  • Self-extinguishing; Class A fire rating (ASTM E-84)
  • UL 94V-0


Recommended Applications

Below are some of the more common applications for which DIBOND® Specialty Finishes provides a solution. While these are frequent uses for our material, we love to see the unique applications designers & artists come up with!

  • POP / POS Displays Medium-term application life
  • Exhibits & Kiosks Long-term application life
  • Interior Signage & Displays Long-term application life
  • Store & Interior Design Long-term application life
  • Framing Long-term application life
  • Hanging Signage Long-term application life
  • Window Displays Long-term application life
  • Promotional Campaigns Long-term application life
  • 3-Dimensional Displays Long-term application life
  • Furniture Design Long-term application life
  • Shop-Fitting Long-term application life
  • Retail Fixtures Long-term application life
  • Shelving & Storage Components Long-term application life
  • Dimensional Letters Long-term application life

Recommended Fabrication Methods

Thanks to over 40 years of manufacturing experience, we are able to provide general fabrication guidelines and best practices that have been successful with our materials.”

  • Mounting Cold mount techniques only
  • Repositioning Vinyl
  • Digital Printing
  • Screen Printing
  • Painting
  • Saw Cutting
  • Routing
  • Die Cut/Punch Punch press die set is required; not a steel rule die

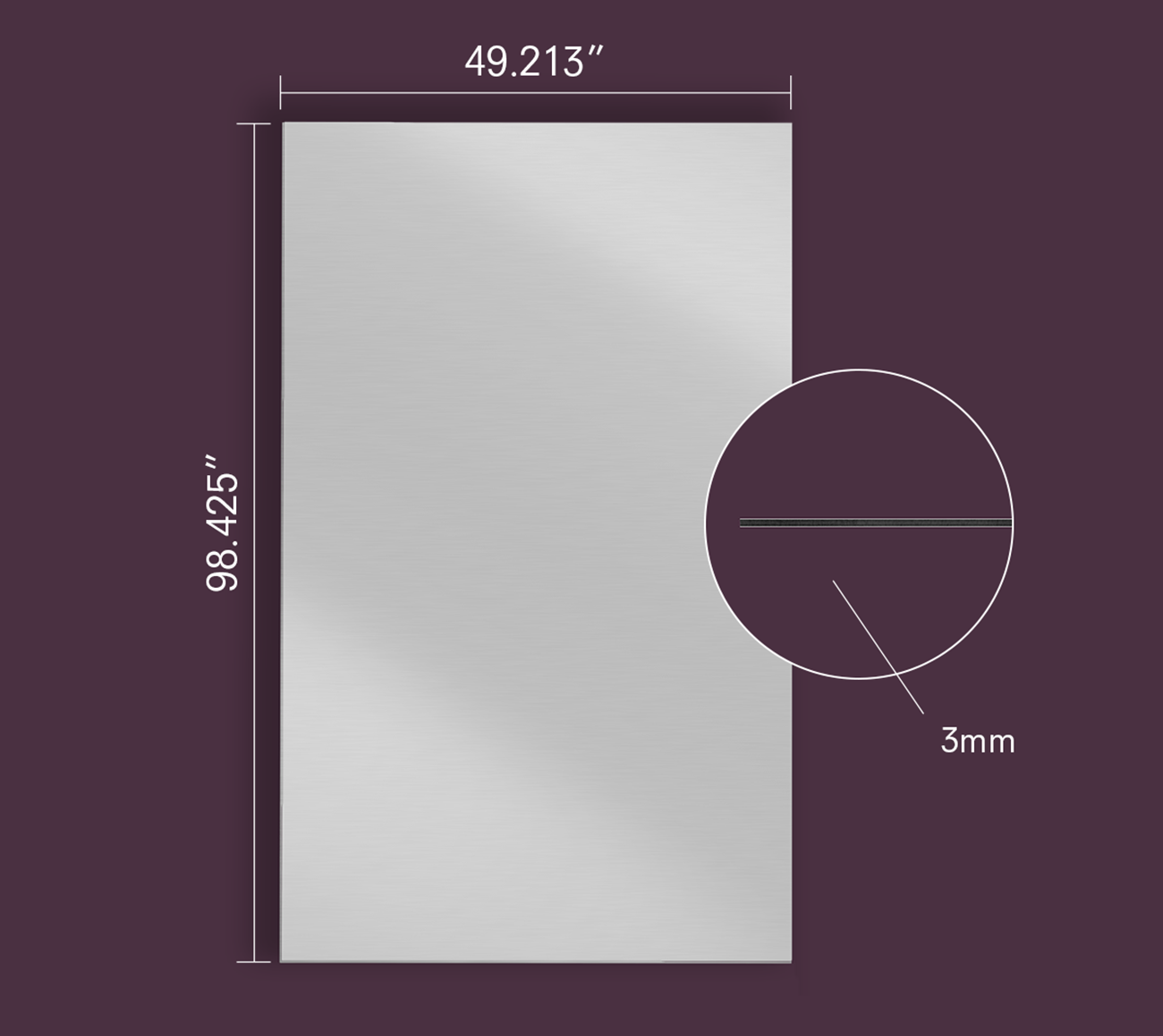

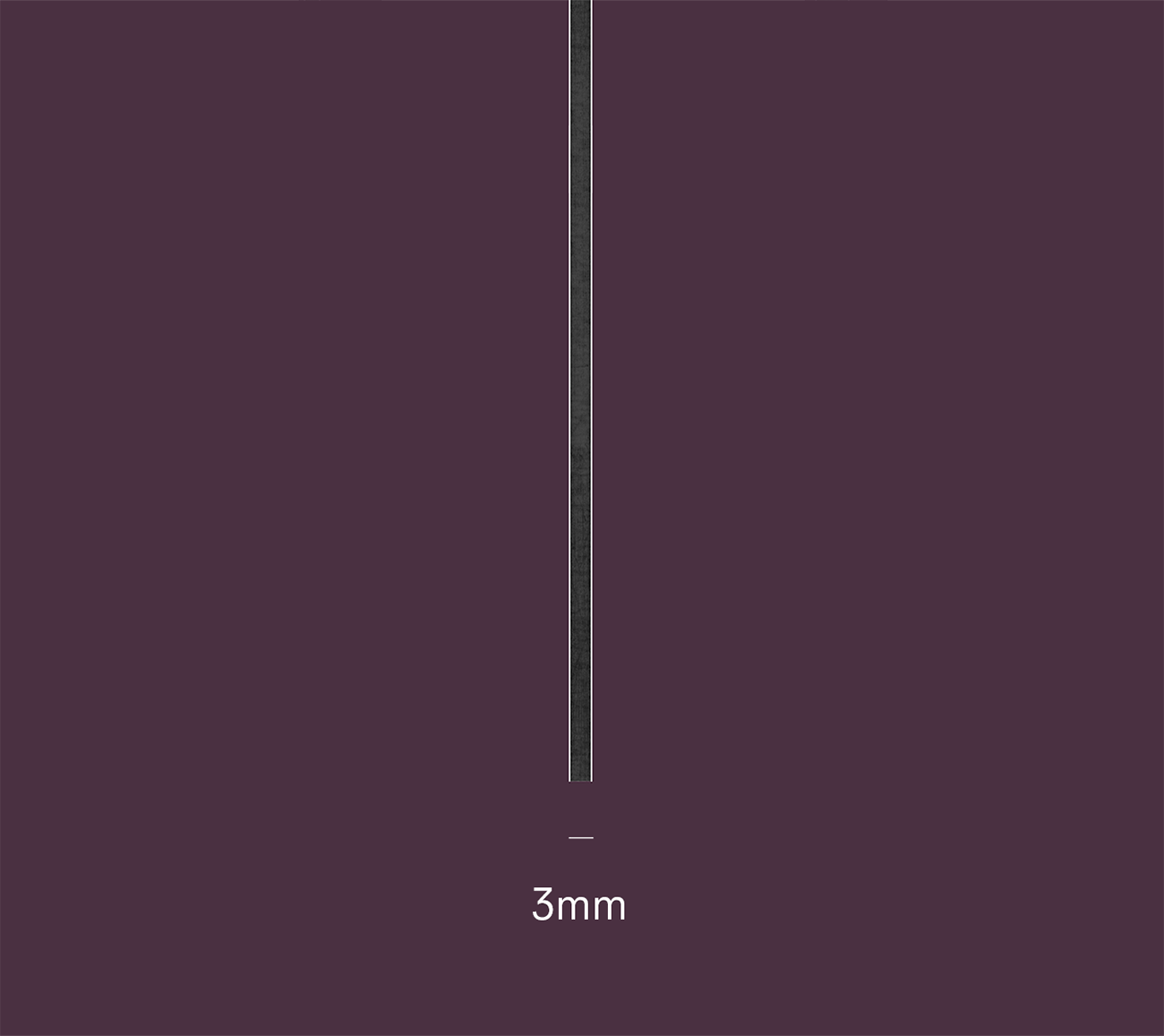

Gauges, Colors & Sheet Sizes


Gauges and Colors Stock Sheet Sizes
3mm - Mirror / Mill Finish (aluminum) 49.2” x 98.4”
3mm - Mirror Anthracite / Mill Finish (aluminum) 49.2” x 98.4”
